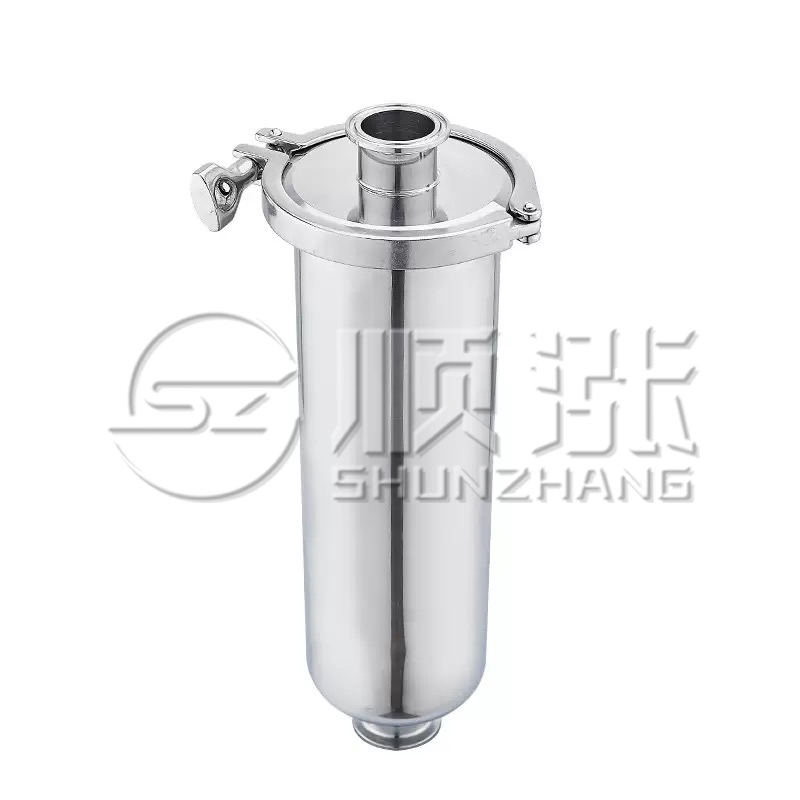

Pipeline Straight-Through Filter

This stainless steel quick-fit pipeline straight-through filter is made of high-quality stainless steel, with excellent corrosion resistance and mechanical strength, and can operate stably for a long time in many complex environments. Its innovative quick-fit structure design makes the installation, disassembly and maintenance process extremely convenient, without the need for cumbersome tools, significantly saving operating time and labor costs. The straight-through structure effectively reduces fluid flow resistance, ensures high flow rate, and guarantees high filtration efficiency. Precision manufacturing process gives it good sealing performance, which can effectively prevent liquid leakage and enhance the reliability of filtration. Widely used in food and beverage, pharmaceutical, chemical, water treatment and other industries, real-time filtration of liquid in the pipeline, accurate removal of impurities and particles, for the normal operation of subsequent equipment and product quality to provide a strong guarantee.

I. Product structure and principle

Pipeline straight-through filters use "Streamlined Body + High Precision Cartridge + Standard Interface" Structural design. The main body is made of high quality stainless steel (304/316L), which is resistant to pressure and corrosion; the internal filter element can be made of stainless steel mesh, sintered felt and other materials, and the precision range is 5μm - 500μmThe filter element is used for the purpose of filtering the fluid from the inlet to the outlet. When the fluid flows in from the inlet, the impurity is intercepted by the filter element, and the clean fluid flows out from the outlet, realizing the "Ready-to-fill filtration with zero impurity escape."Ensure that the plumbing system is clean and unobstructed.

II. Performance Advantages

High precision filtration: Filter element precision woven or sintered process, high efficiency interception of particles, suspended solids, to protect downstream pumps, valves, instruments from wear and tear.
Low resistance operation: Streamlined internal design, reduced fluid resistance 30%, less energy consumption, to ensure stable system flow.
Convenient installation: Straight-through construction, direct interface with piping, no extra space required, horizontal or vertical installation.
durableStainless steel is corrosion-resistant, and the cartridge can be washed and used repeatedly, with a service life of more than 5 years.

III. Application scenarios

Chemical industry: Filter chemical raw materials and solvents to prevent impurities from affecting the purity of the reaction.
Water treatment systems: Intercepts sediment and rust in water and protects reverse osmosis membrane and ion exchange resin.
food and drink: Filter suspended matter in syrups and juices to safeguard product taste and quality.
pharmaceutical production: Fine filtration of the drug solution to meet GMP standards and ensure drug safety.
Cooling and heating: Filter impurities in chilled water and hot water to protect heat exchangers and compressors.

IV. Operation and maintenance

Easy to clean: Periodically open the end cap, remove the cartridge and rinse with water or compressed air to restore performance.
Easy replacement: No specialized tools are required, and cartridges can be changed in less than 5 minutes, reducing downtime.
Low maintenance costsNo wearing parts design, only need to check the seals periodically, long-term use more worry.

V. Technical parameters


Nominal diameter	DN15 - DN300 (special specifications can be customized)
work pressure	0.1 to 1.6 MPa
operating temperature	≤ 85 °C (adjustable according to material and seal)
Filtration accuracy	5μm, 10μm, 20μm, 50μm, 100μm...500μm
Main material	304 stainless steel, 316L stainless steel
Filter material	Stainless Steel Woven Wire Mesh, Sintered Felt, Polymer Filter Mesh
connection method	Threaded connection (e.g. G1/2), flange connection (e.g. DN50)
