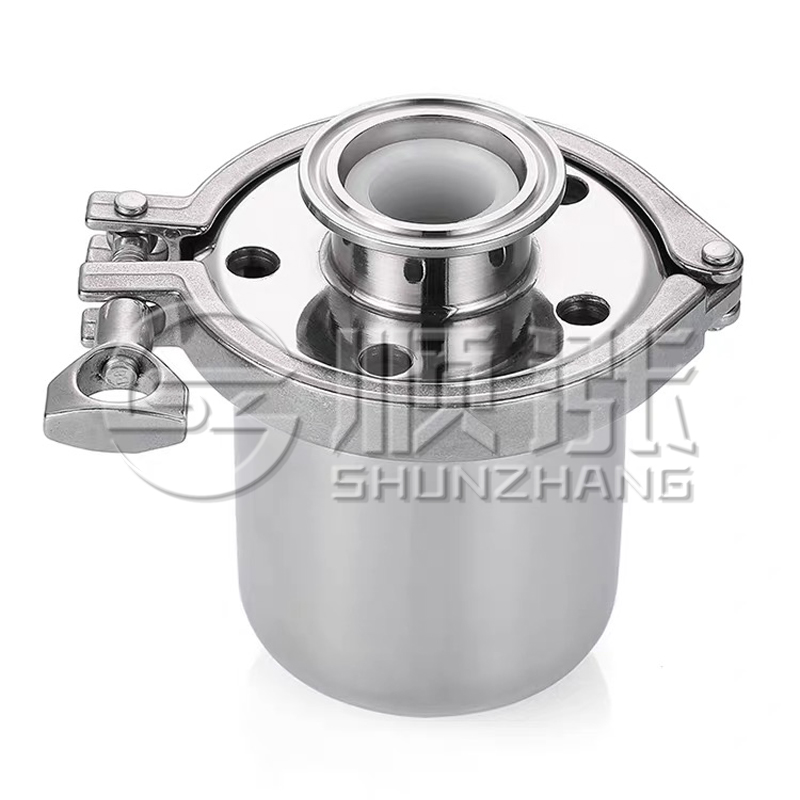

This stainless steel quick release respirator is made of high quality stainless steel with excellent corrosion resistance and durability, and can comfortably cope with a variety of complex industrial environments. Its innovative quick release design allows for quick installation and removal, significantly saving time and labor costs. Precision construction ensures efficient breathing ventilation, effectively balances the system pressure, and strongly blocks the intrusion of dust, impurities, etc., creating a clean and stable operating environment for the internal equipment. Widely used in food, beverage, pharmaceutical, chemical and other industries in the piping system or tank equipment, is to protect the production of safe and stable key accessories.
I. Product structure and principle
- Product Mix:The main body is made of high quality 304/316L stainless steel, equipped with quick-fit clamp connections for quick installation and removal. The interior is loaded with high-efficiency filter elements (e.g. PTFE, stainless steel fibers, etc.).
- How it works:When the tank needs to breathe, the gas passes through the breather, and the cartridge filters the gas, intercepting particles, microorganisms, dust and other impurities in it, ensuring that the gas entering or exiting the tank is clean, maintaining the pressure balance in the tank, and safeguarding the production process from contamination.
II. Performance Advantages
- Quick Installation Design: Clamp type quick release connector for quick installation or removal without tools, saving time and labor costs.
- Excellent materialThe use of corrosion-resistant 304/316L stainless steel provides a long service life in a variety of harsh environments.
- high efficiency filtrationHigh filtration accuracy (e.g. 0.1μm - 10μm), significant interception of particles, microorganisms, etc., to ensure the purity of the gas.
- good sealing: Reasonable structural design and excellent performance of seals prevent gas leakage and ensure the stability of the breathing process.
III. Application scenarios
- Food & Beverage IndustryUsed in fermentation tanks, storage tanks, etc. to ensure that gas exchange is free from contamination and to maintain food hygiene and safety.
- Pharmaceutical industry: In pharmaceutical production tanks, filtering respiratory gases, meeting strict hygiene standards such as GMP, and preventing pharmaceutical contamination.
- Chemical industryIt is suitable for chemical reaction kettle, storage tank, etc., filtering corrosive or common gases, protecting equipment and product quality.
- genetic engineering: Provides clean breathing gas for equipment such as biodigesters, safeguarding the microbial culture environment from contamination.
IV. Operation and maintenance
- easy operation: Install the breather by aligning the breather to the tank interface with the quick release clamps to ensure a tight seal before putting it into service.
- Easy maintenanceRegularly check the status of the seals, replace the cartridge through the quick-fit structure in time according to the frequency of use and working conditions, and clean the housing (with water or neutral detergent) to ensure the filtration performance and cleanliness of the equipment.
V. Technical parameters
| Main material | 304 stainless steel / 316L stainless steel |
| Filtration accuracy | 0.1μm, 0.22μm, 1μm, 10μm, etc. available |
| work pressure | ≤0.6MPa |
| operating temperature | ≤120℃ (adjustable according to seal and cartridge material) |
| interface method | Quick release clamps (e.g. DN50 - DN200 etc.) |
| Filter material | Polytetrafluoroethylene (PTFE), stainless steel fiber, polypropylene (PP), etc. |
| Applicable gases | Air, nitrogen, inert gas, etc. |
With its convenient quick-fit structure and efficient filtration performance, the quick-fit respirator provides reliable breathing protection for tank equipment in various industries. The source manufacturer supports customization, for more product information or to get an exclusive quote, please feel free to contact us, we will provide you with professional and efficient breathing filtration solutions to guard the purity and safety of the production environment!
