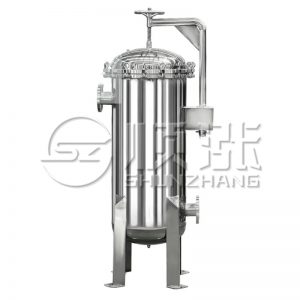

The main body of this stainless steel top-entry filter is made of high-quality stainless steel with excellent corrosion resistance and robustness, which can be adapted to a variety of complex working conditions. Its unique top-entry structural design facilitates the smooth inflow of media, and the top is equipped with hanging rings and other components for easy installation and maintenance. The side is equipped with flange interface, which is convenient to connect and has good sealing performance, and can effectively guarantee the stable transmission of media in the filtration process. According to different filtration requirements, it can be equipped with various types of filtration elements to realize efficient interception of impurities in liquid or gas, and is widely used in the purification of fluids in the chemical, food, pharmaceutical and other industries.
I. Product structure and principle
- Product Mix:The main body of the top-entry filter is meticulously made of high-quality 304/316L stainless steel in a cylindrical structure, equipped with a top opening cover device and inlet and outlet flange interfaces. High-precision filter elements (such as stainless steel sintered mesh, polymer filter, etc.) are installed inside.
- How it works:The fluid to be filtered enters the filter from the top inlet, and under pressure, the fluid goes through the filter core, the impurities are intercepted on the surface or inside the filter element, and the clean fluid flows out from the bottom outlet, realizing high-efficiency filtration and ensuring that the subsequent processes or equipment are free from the influence of impurities.
II. Performance Advantages
III. Application scenarios
IV. Operation and maintenance
V. Technical parameters
| Main material | 304 stainless steel / 316L stainless steel |
| Filtration accuracy | 1μm, 5μm, 10μm...100μm selectable |
| work pressure | ≤1.6MPa (higher pressure can be customized) |
| operating temperature | -20°C - 120°C (depending on seal and cartridge material) |
| Interface Specifications | DN25 - DN150 (flange connection) |
| Filter material | Stainless steel sintered mesh, polymer filter, sintered felt, etc. |
| throughput | 5 - 100m³/h depending on cartridge size and type |
With its scientific structural design and excellent performance, Top Entry Filter provides accurate and stable filtration solutions for various industries. Source manufacturers direct supply, support customized needs, for more product information or to get exclusive quotes, please feel free to contact us, we will provide you with professional and efficient filtration solutions to help the production process smooth and worry-free!
