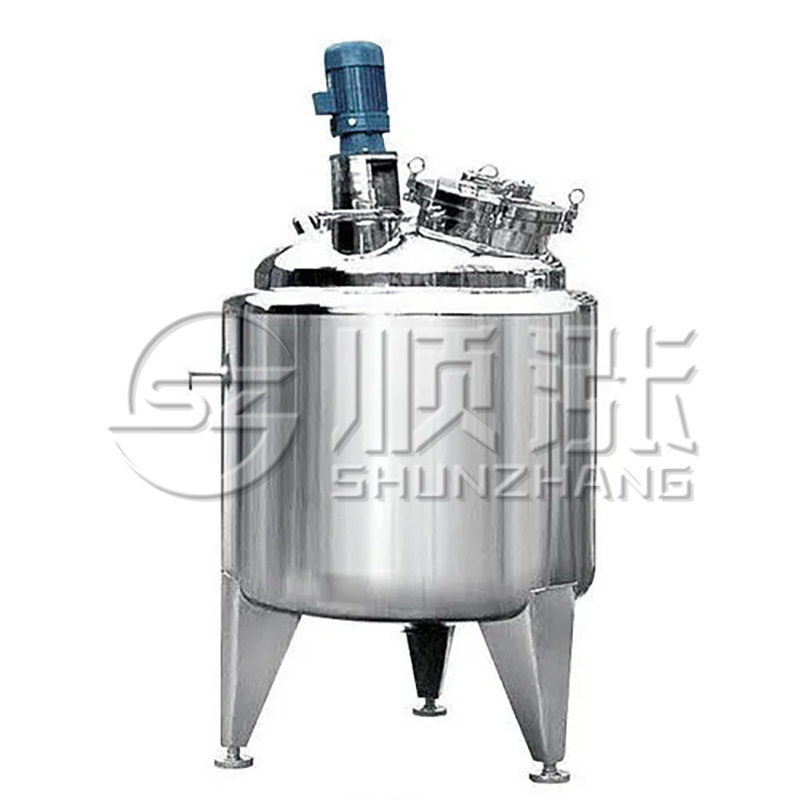

Jacketed mixing tanks

The main body of the jacketed mixing tank is made of high quality 304/316L stainless steel, which has excellent corrosion resistance and can effectively resist the erosion of many chemical media to ensure long-term stable operation. The unique jacket design can realize precise temperature control, through the medium of different temperatures (such as hot water, cold water or steam) in the jacket, the temperature of the material in the tank can be adjusted quickly and stably to meet the strict requirements of various processes on the temperature. The mixing system in the tank can flexibly adjust the mixing speed according to the characteristics of materials and process requirements. With the well-designed mixing paddles, the materials can be evenly mixed, dispersed or dissolved, which can effectively improve the production efficiency and product quality. Widely used in chemical, food, pharmaceutical, daily chemical and other industries, whether it is for chemical reaction, material mixing, or storage and heating and cooling, can show strong adaptability and reliability, is an indispensable key equipment in industrial production.

I. Product structure and principle

Product Mix:The body of the jacketed mixing tank is made of high quality 304/316L stainless steel with excellent corrosion resistance. The tank structure consists of two layers: the inner tank is used to contain the material and the jacket surrounds the outer tank to form a closed space.
How it works:When working, the temperature control of the materials in the tank is realized by using the principle of heat conduction by passing heating or cooling medium (such as hot water, steam, cold water, etc.) into the jacket. There is a stirring device installed on the top, driven by the motor, which drives different forms of stirring paddles to rotate through the stirring shaft to stir, mix, disperse and other operations on the materials to promote the mass and heat transfer between the materials and ensure the uniformity of the materials.

II. Performance Advantages

Excellent materialAdopt 304/316L stainless steel, strong corrosion resistance, can avoid material contamination, in line with the food, pharmaceutical and other industries health standards, to extend the service life of the equipment.
Precise temperature controlThe jacket design with the temperature control system can realize precise temperature adjustment, wide temperature control range, fast response and stable maintenance of the temperature required by the material, to meet the strict requirements of different processes on the temperature.
Highly efficient mixingThe speed of mixing device can be adjusted, with a variety of forms of mixing paddle, according to the characteristics of the material and process requirements for targeted mixing, to ensure that the material is mixed evenly, improve production efficiency and product quality.
Reliable sealingThe key parts such as tank and mixing shaft adopt high-quality seals with good sealing performance, which can effectively prevent the leakage of materials and the entry of external impurities, and guarantee the production safety and purity of materials.
Structural robustnessThe overall structure is reasonably designed, with reinforced legs, strong load-bearing capacity, good stability, and can adapt to long-time continuous operation and complex industrial production environments.

III. Application scenarios

Chemical industry: Used in various chemical reactions, material dissolution, mixing and other processes, such as the production of coatings, inks, adhesives and other products.
Food industry: Suitable for mixing, heating, cooling and other operations of food ingredients, such as sauces, dairy products, fruit juices and other production processes.
Pharmaceutical industryIt can be used for mixing, dissolving, concentrating and other processes of pharmaceutical preparations, and meets the strict requirements of pharmaceutical production on equipment hygiene and temperature control.
Household Chemical Industry: In the production of cosmetics, detergents and other products, it is used in the mixing, emulsifying and dispersing of materials to ensure the stability of product quality.

IV. Operation and maintenance

easy operationThe equipment is equipped with humanized operation interface, through the control panel can easily set the mixing speed, temperature and other parameters, real-time monitoring of the equipment's operating status, the operation is simple and easy to understand, reducing the operator's technical threshold.
Easy maintenance: Regularly check the wear and tear of seals and replace them in time; clean the dirt inside the tank and outside the jacket to maintain good heat transfer; lubricate and maintain the transmission parts of the mixing device to ensure smooth operation of the equipment.

V. Technical parameters


power supply	380V, 50HZ or customized according to customer requirements
power range	0.18~75kw
treatment capacity	10 - 10000L
Mixing speed range	0~1440rpm
Configuration Options - Materials in Contact	SUS304 stainless steel, SUS316L stainless steel, carbon steel, Teflon, PE, PU, PP, polyurethane, etc.
Speed control method	Variable frequency speed control or fixed speed
fixing method	Platform type, outrigger type
Working Head Configuration	Anchor paddles with wiper wall, frame paddles, folding blade paddles
closed form	Mechanical Seals, Packing Seals, Air Seals, Simmerring Seals, Magnetic Seals
Installation	Top, bottom, side

With scientific structural design and excellent performance, Jacketed Mixing Tank provides reliable support for many industries such as chemical, food, pharmaceutical and so on. As a source manufacturer, we supply products directly and support personalized customization. For more product information or to get an exclusive quote, please feel free to contact us, we will provide you with professional and efficient solutions to help improve production efficiency and product quality!
