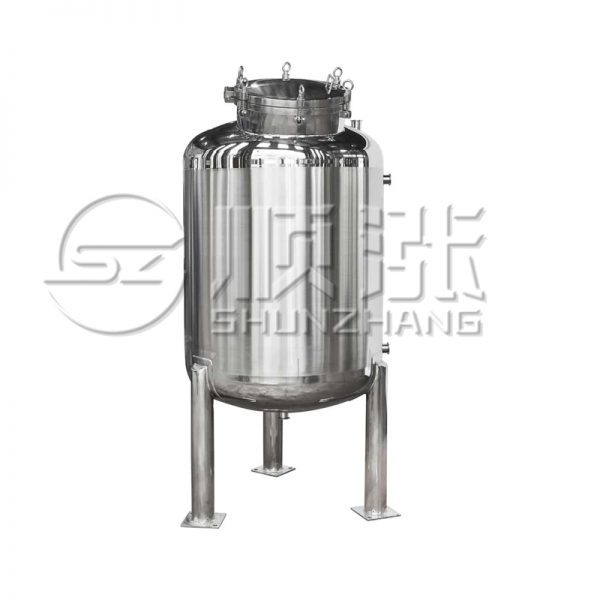

Stainless steel tanks

Shun Rising Machinery specializes in manufacturing stainless steel storage tanks, which are manufactured in strict compliance with GMP and other standards, covering a wide range of specifications from 600L to 20000L. It has single layer, double layer and jacketed structure, and can be flexibly equipped with many kinds of components. Applicable to pharmaceutical, food and beverage industries, to meet the needs of room temperature and heating storage of materials, good material, excellent heat preservation, to provide a reliable solution for your storage needs.

I. Manufacturing standards

In strict accordance with the "Good Manufacturing Practice" GMP General Provisions (revised in 2010), "Pressure Vessels" (GB150-2011) and "Steel Welded Atmospheric Pressure Vessels (with Standard Interpretation)" (NB/T 47003.1-2009), we carry out the design, manufacture and acceptance to ensure the compliance of the products and the reliability of the products. Reliable.

II. Structural features

Tank designThe main body adopts vertical round tank shape, the upper head is standard oval or butterfly, the lower head can choose standard conical, butterfly or oval, the internal transition area adopts round arc transition, no hygienic dead corner, which greatly improves the cleaning convenience and meets the requirements of high hygiene standards.
Structure typeSingle-layer, double-layer (tank and lower head are equipped with insulation layer) and jacketed (tank and lower head are equipped with jacket and insulation layer) are available, which can be flexibly selected according to the actual use scenario and customer needs. At the same time, it supports vertical or horizontal installation, and can be customized with special shapes such as square and round, and equipped with mechanical stirring device to meet diversified process requirements.

III. Flexible allocation

The tank can be equipped with aseptic air filters, digital or dial thermometers, pressure gauges, sight glasses, sanitary manholes, inlet and outlet holes, CIP universal rotating cleaning ball, level meters and other components as required, and can also be customized according to the customer's special requirements, to create a personalized equipment that is adapted to the actual production process.

IV. Areas of application

Pharmaceutical industryIt is suitable for the storage of pure water, injection water, pharmaceutical liquid and intermediate buffer link to ensure the safety and stability of material storage in the process of pharmaceutical production and to meet the strict requirements of the pharmaceutical process on the hygiene and quality.
Food & Beverage IndustryIt can be used for normal and heated storage of milk, fruit juice and other materials to ensure that the quality of food and beverage in the storage process is not affected, and help food and beverage enterprises to produce efficiently.

V. Product Features

Complete specificationsThe volume range is from 600L to 20,000L, and can be individually designed and manufactured according to the customer's actual needs, providing the right solution for both small-scale production enterprises and large-scale industrial projects.
Insulation ExcellenceThe insulation layer is made of high-quality rock wool or polyurethane material, which has excellent thermal insulation performance, effectively maintains the temperature stability of the materials in the tank, reduces energy loss and lowers the operation cost.
superb craftsmanshipThe interface adopts quick-fit chuck type (snap-in) design, which is convenient and easy to disassemble and install. The tank liner is made of 304 or 316L high-quality stainless steel, the inner surface is mirror polished, with roughness Ra≤0.28μm-0.6μm, smooth and clean, not easy to leave material and easy to clean; the outer surface can be polished, brushed, sandblasted, etc. according to customer needs, which is both beautiful and practical.

VI. Design parameters


Design Pressure	ATM~ 1.0MPa
Design temperature	Tank, jacket according to customer requirements (0 ℃ ~ 160 ℃)
Liner Material	304, 316L
insulation material	Rock wool or polyurethane
Outrigger material	304
Surface treatment type	Mechanical polishing, electrolytic polishing, sand blasting, acid washing
Polishing precision	Inner wall 0.3μm, outer wall 0.6μm
Inlet and outlet connections	Quick Release Clips, Flanges

VII. Dimensional parameters


Effective volume: L		600	1000	2000	3000	4000	5000
canister	Diameter: mm	Φ900	Φ1100	Φ1300	Φ1600	Φ1700	Φ1800
	Height / Length: mm	900	1000	1500	1500	1800	1800
The above size standard is only for reference, can be customized according to customer requirements
